Match Case

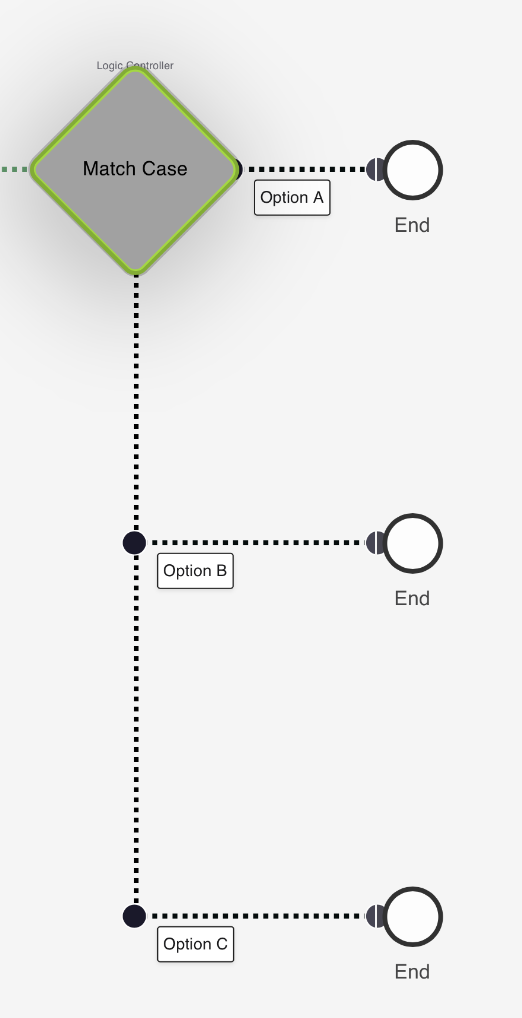

Match Case routes execution to one of several branches.

It compares one selected value against a predefined list of options.

Use it when one input must map to exactly one outcome.

Note

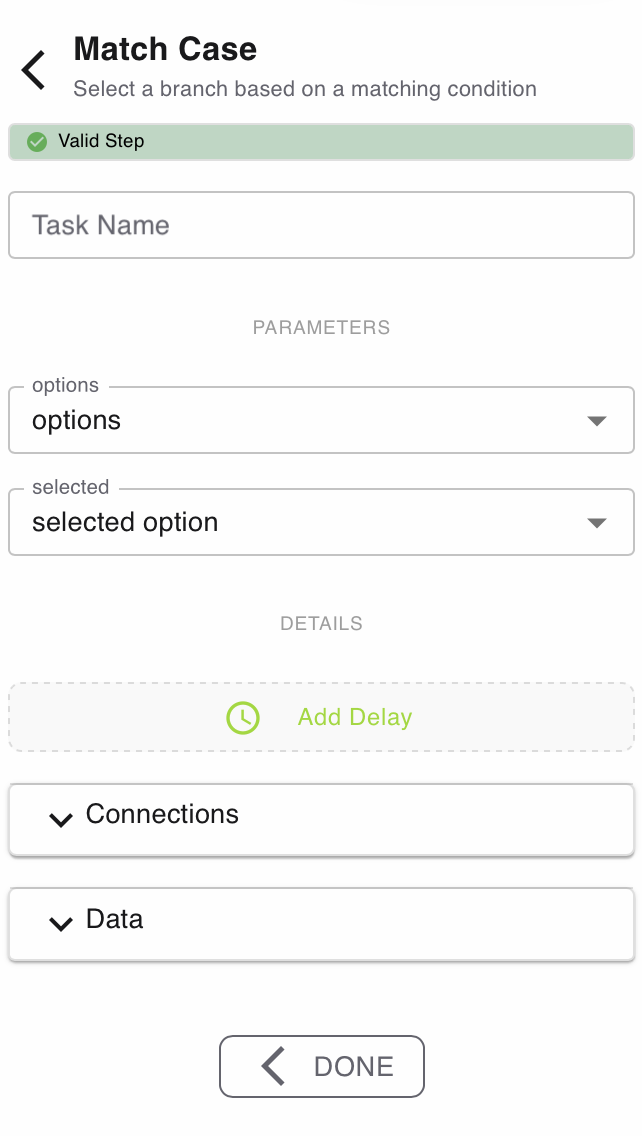

Configure this action in the Builder. See Builder Navigation and Workspace Basics for the surrounding UI.

The current status of the step is shown directly under the Step Type. Specific problems can be seen by expanding the box.

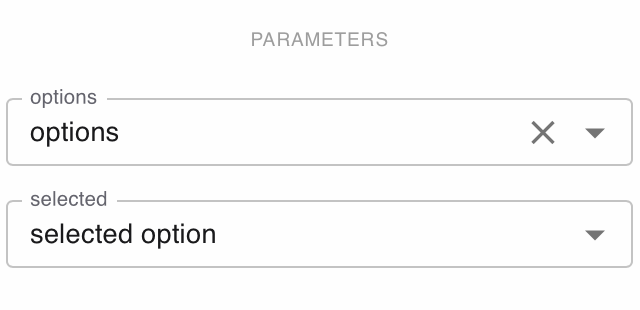

Set Options to the array symbol that contains the allowed case values.

Set Selected to the value you want to evaluate.

Note

To avoid failures, define the symbol containing the selected option as a select from options

Warning

Always connect a failure path. It handles values that do not exist in Options.

Open DETAILS for advanced settings.

Use Add Delay if the task should become active later.

Enable Workdays only if the delay should ignore weekends and non-working days.

Use Connections to review incoming and outgoing links for this step.

Use Data to manage automatic context modifications and local symbols.

Automatic context modifications update process values when the task is completed.

Local symbols store step-specific values that are only relevant inside this action.

Match Case runs automatically.

It does not wait for user input.

The engine compares Selected against Options in order.

If it finds a match, it emits a status in the format index-value.

That status is used to route execution down the matching branch.

If no match is found, the step emits failure.

Use controlled input values whenever possible. The selected option symbol should be a select from the options.

Keep option values short and predictable.

Avoid manual text entry when an earlier step can return a fixed selection.

Always add a failure branch for unexpected values. O

Use Conditional Branching instead when you only need a true or false split.

Match Case works well for multi-path routing.
